Overall Dimensions (L × W × H)
17 × 3.3 × 3.5 m
| | |
|---|---|
| | |
| | |
| | |
| | |
| | |
17 × 3.3 × 3.5 m
900 m³/hr
6.5 m
Dredgers
Equipment

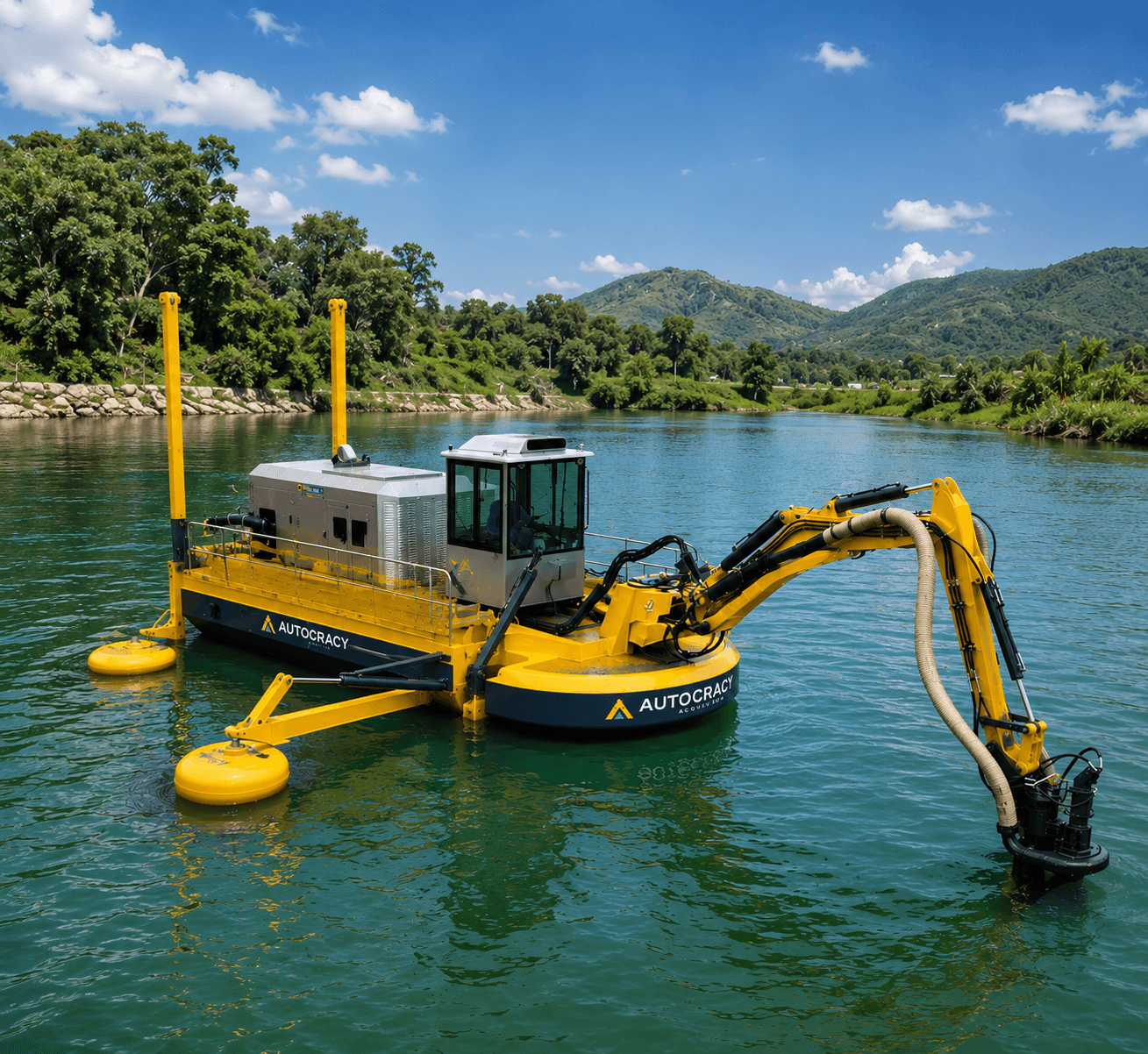

The Autocracy Machinery Amphibious Multipurpose Dredger is designed for projects that must work at the changing edge between dry ground and shallow water. Its integrated platform brings together an excavator-style working arm, stabilising supports, hydraulic power, dredging capacity, and water mobility so crews can plan desilting and maintenance work around one versatile machine.

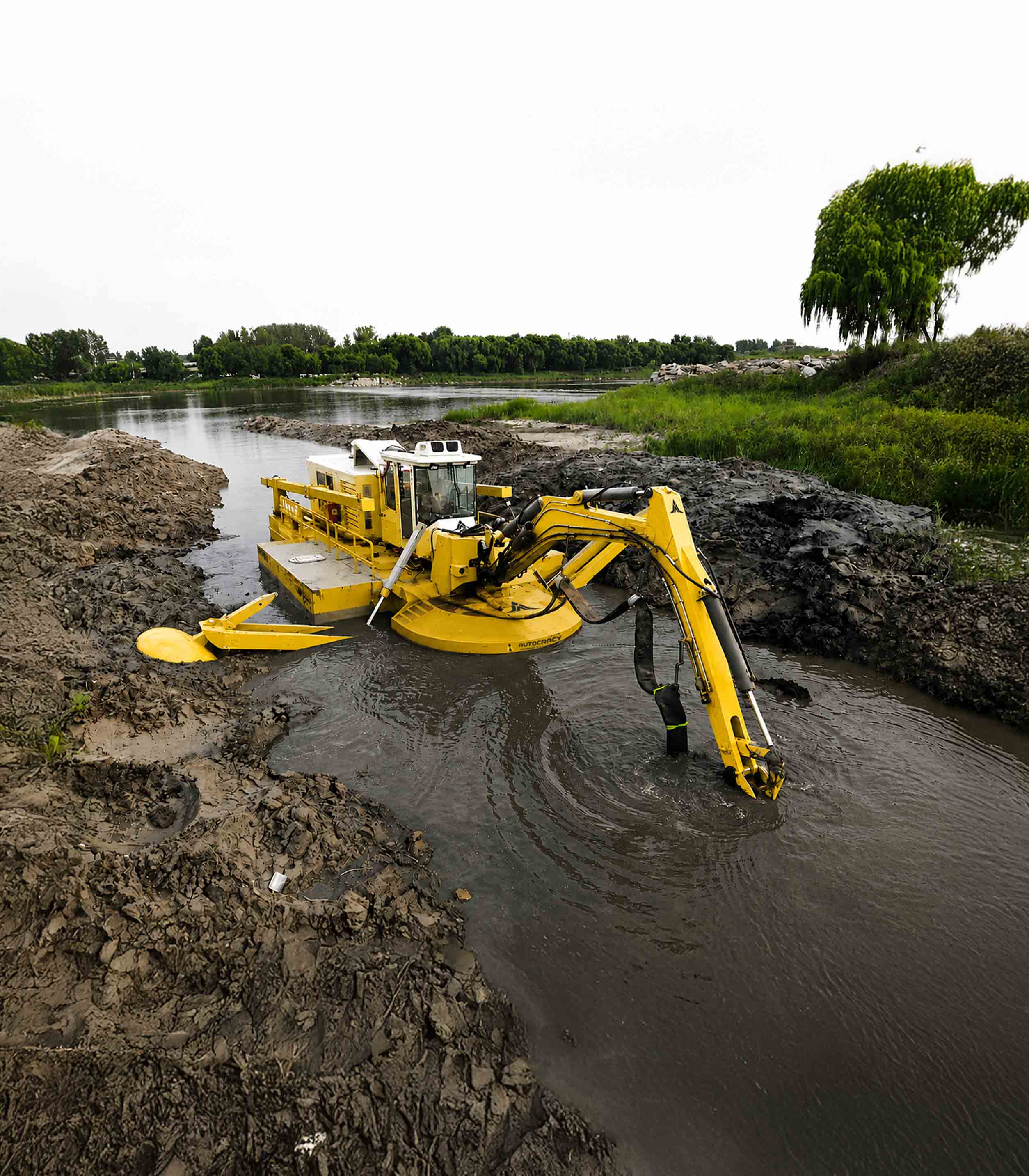

With a dredging-pump capacity of 900 m³/hr and a maximum dredging depth of 6.5 m, the machine is suited to planned removal of silt and accumulated material from canals, lakes, reservoirs, ponds, drains, and managed waterways. The working arm supports controlled excavation around banks, edges, and confined areas where conventional floating dredgers can be difficult to position.
A 269 kW power output and load-sensing variable-displacement hydraulic pumps provide the hydraulic foundation for responsive machine functions. Optional propeller equipment is rated from 0 to 1,200 r/min, while the stated walking speed is 4 knots. Final attachment selection and project output should be confirmed against material type, discharge arrangement, water depth, and site access.
Review the principal dimensions, dredging capacity, mobility, power, and hydraulic configuration supplied for this model.
17 × 3.3 × 3.5 m
900 m³/hr
6.5 m
22 tonnes
0–1,200 r/min
4 knots
269 kW
Load-sensing variable-displacement pumps
The platform combines working reach, pumping capacity, positioning, and hydraulic control for demanding waterway-maintenance projects.
High-volume pumping capacity supports productive desilting and sediment-removal operations. Actual output varies with material, slurry concentration, lift, and discharge distance.
Working reach suited to shallow waterways, canals, lakes, reservoirs, ponds, and similar maintenance environments.
The machine is configured to operate around soft banks, wet ground, and shallow water where access can constrain conventional equipment.
Variable-displacement hydraulic pumps match hydraulic delivery to operating demand for responsive control of machine functions.

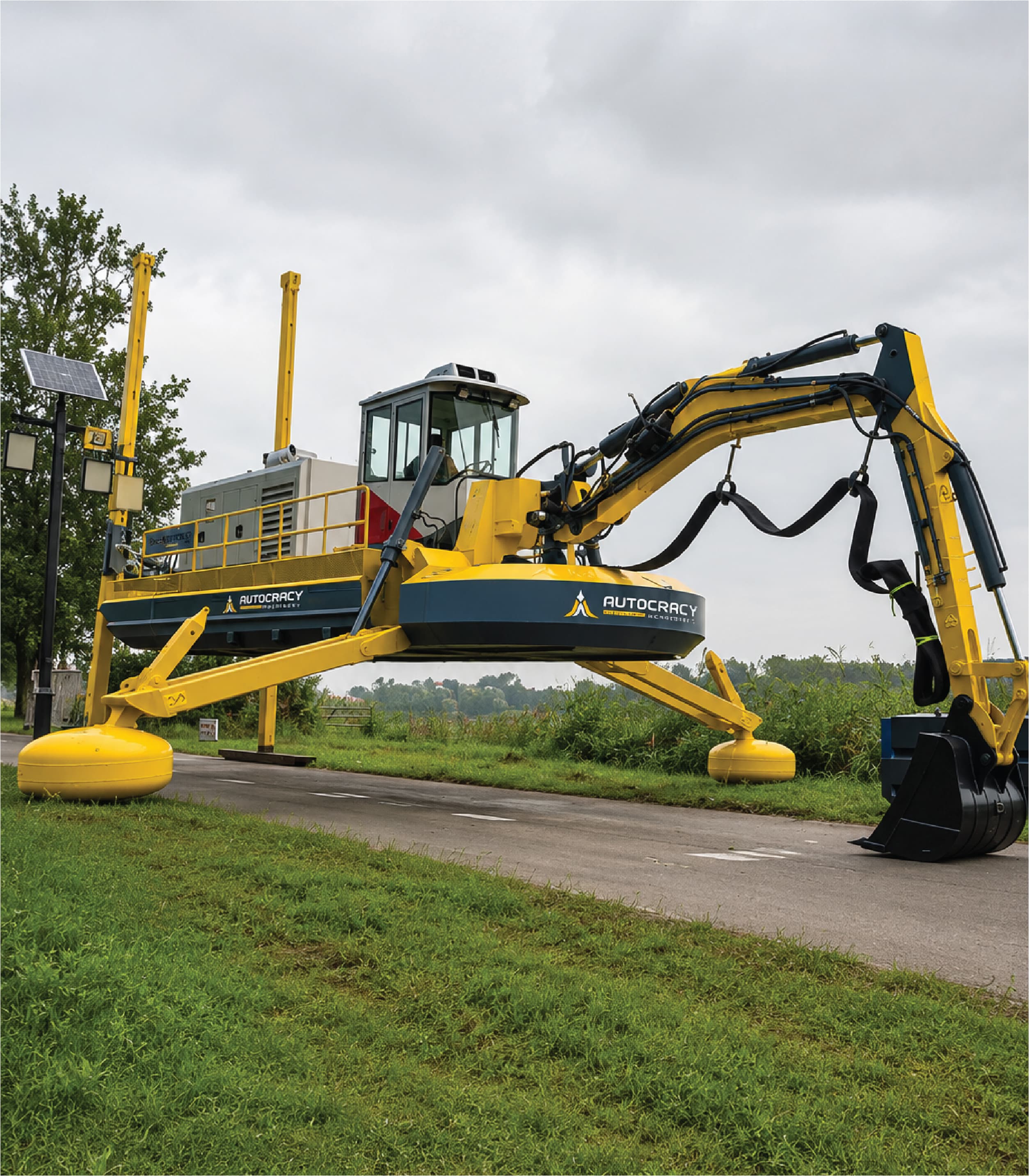

The support-leg arrangement visible on the machine provides a broad working stance for controlled excavation and dredging.
An optional propeller rated from 0 to 1,200 r/min supports movement and positioning in water.
BEST SUITED FOR
A project-focused machine for authorities, contractors, and operators responsible for maintaining water capacity and flow.
Desilting and maintenance of canals, drains, lakes, reservoirs, ponds, and managed channels.
Removal of accumulated sediment and material during planned restoration of shallow water bodies and wetlands.
Routine and project-based maintenance where water flow, storage capacity, drainage performance, or access must be restored.
Maintenance support for settling ponds, process-water ponds, and other managed water infrastructure, subject to material assessment.
APPLICATIONS
Match machine configuration and attachments to the material, working depth, discharge route, and environmental requirements of each site.
Remove accumulated silt and material to help restore channel profile and water conveyance.
Support planned sediment-management work around shallow zones, inlets, banks, and confined sections.
Work in municipal, agricultural, or industrial ponds after confirming material characteristics and disposal requirements.
Use the articulated working arm for controlled excavation and shaping around waterway margins.
Key planning information for the Autocracy Machinery Amphibious Multipurpose Dredger.
Model details
Amphibious Multipurpose Dredger is a equipment in the Dredgers range, designed to help project teams understand equipment fit, specifications, applications, and support options before work begins.
Explore the Autocracy Machinery Amphibious Multipurpose Dredger: 900 m³/hr pump capacity, 6.5 m dredging depth, 269 kW output, and optional 4-knot propulsion.
Use the specifications and feature sections to compare Amphibious Multipurpose Dredger with related models in the same product category.
The model page helps buyers discuss site conditions, output requirements, carrier compatibility, timeline, and quotation needs with Autocracy Machinery.
Amphibious Multipurpose Dredger Amphibious Multipurpose Dredger for planned field deployment should be reviewed as part of the full site workflow, not only as a standalone equipment listing. Buyers usually need to compare the required output, route length, working width, access condition, operator availability, and delivery timeline before selecting a machine for field deployment.
Amphibious Multipurpose Dredger is a equipment in the Dredgers range, designed to help project teams understand equipment fit, specifications, applications, and support options before work begins. This makes the page useful for early project planning, tender comparison, contractor discussions, and internal equipment shortlisting where teams need clear information before speaking with a supplier.
Explore the Autocracy Machinery Amphibious Multipurpose Dredger: 900 m³/hr pump capacity, 6.5 m dredging depth, 269 kW output, and optional 4-knot propulsion. The same review should also include soil or surface condition, transport access, available carrier or tractor capacity, daily productivity expectation, service support, and the practical handoff between excavation, installation, backfilling, lifting, or finishing work.
Use the specifications and feature sections to compare Amphibious Multipurpose Dredger with related models in the same product category. For infrastructure and utility projects, the equipment decision often affects crew size, fuel use, rework, route consistency, safety planning, and the number of machines required on site. A structured comparison helps avoid choosing a model only by headline specification.
The model page helps buyers discuss site conditions, output requirements, carrier compatibility, timeline, and quotation needs with Autocracy Machinery. Autocracy Machinery pages are organised to help project owners, EPC teams, contractors, municipalities, utilities, agriculture teams, and site managers connect product capability with real operating conditions before requesting a quote or brochure.
When evaluating Amphibious Multipurpose Dredger Amphibious Multipurpose Dredger for planned field deployment, teams can use the model information, media, specifications, application notes, and quote conversation together. This gives procurement and site teams a clearer basis for confirming fit, planning mobilisation, and preparing the next step with Autocracy Machinery.
A practical selection process also considers how the machine will move between work fronts, how operators will maintain output through the day, and how the surrounding crew will manage material handling, marking, inspection, and finishing work after the equipment completes its pass.
For many field projects, the right equipment choice is the one that balances specification, availability, maintenance access, and predictable output. Amphibious Multipurpose Dredger Amphibious Multipurpose Dredger for planned field deployment should therefore be discussed with both procurement teams and site supervisors before finalising the requirement.
Project teams can prepare a stronger quote request by sharing route length, expected depth or working range, ground condition, preferred carrier, transport limits, daily target, and any special constraints such as narrow access, road-edge work, finished surfaces, utilities, or active public areas.
The content on this page is intended to support that discussion with enough context to compare options, understand the application fit, and decide whether a standard model, attachment configuration, brochure review, or direct consultation is the right next step.
Autocracy Machinery supports buyers who need equipment for trenching, pole installation, material handling, aquatic work, agricultural operations, landscaping, water management, solar EPC activity, telecom routes, defence infrastructure, and general construction requirements.
Before mobilisation, teams should confirm safety practices, operator familiarity, service support, spare availability, site preparation, and the handoff between machine output and downstream work. That final check helps keep deployment practical once the equipment reaches the project site.
