Support Vehicle
Tractor
| | |
|---|---|
| | |
| | |
| | |
| | |
| | |
Tractor
> 90 HP
1.2 m
Pole Stacker
Equipment

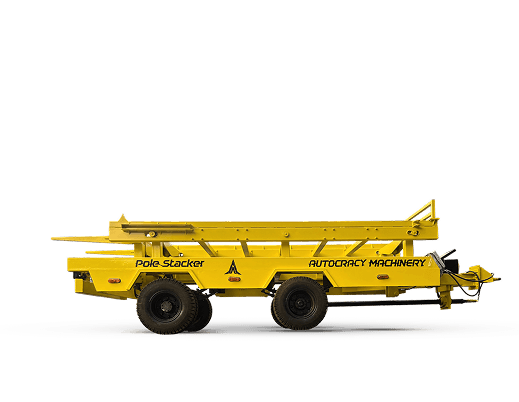

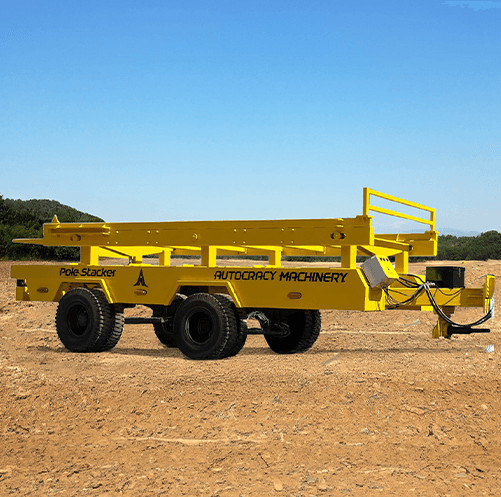

The Pole Stacker 100X Machine is a heavy-duty tractor-mounted material handling solution engineered for efficient lifting, transportation, stacking, and precise positioning of long poles, torque tubes, and structural members used in solar power plant installations. Designed for tractors above 90 HP, the system offers robust load-handling capability of up to 10 MT and supports pole lengths ranging from 8 to 11 meters, making it highly suitable for large-scale solar infrastructure development.
This Solar Pole Stacker 100X is widely used in solar farm projects to streamline the installation of mounting structures while reducing manual handling risks and improving site productivity. Its adjustable fork system accommodates multiple profiles such as round, square, rectangular, and octagonal sections, ensuring operational flexibility across diverse structural requirements. The hydraulic remote control system enables safe and precise operation from a distance, enhancing operator safety during lifting and placement tasks.
Built with a rugged frame, heavy-duty suspension system, and high ground clearance, the Pole Stacker 100X Equipment ensures stable performance on uneven terrain commonly found in solar project sites. The primary purpose of this machine is to replace manual and crane-based handling methods with a more efficient tractor-mounted solution, thereby accelerating installation timelines, reducing labor dependency, and improving overall project execution efficiency in the solar industry.
Built for performance. Trusted by contractors, municipalities, and EPC teams across sectors.
Tractor
> 90 HP
1.2 m
10 MT
8 – 11 m
1600 – 2300 mm
7.5 m
2.2 m
1.8 – 2.25 m
4500 kgs
Discover what makes the Pole Stacker 100X stand out from the competition
Heavy-duty leaf spring suspension absorbs field shocks and improves machine stability while transporting long and heavy structural materials across uneven terrain.
Designed to safely lift, transport, and position round, square, rectangular, and octagonal poles and torque tubes during large-scale field operations.
Supports handling of multiple pipe and structural member profiles, enabling adaptability across varied installation and transportation requirements.
Hydraulic remote operation with a range of up to 100 meters improves operator safety and enables precise positioning during loading and unloading activities.
Integrated heavy-duty stoppers enhance load stability and provide safer handling support during transportation and material placement operations.
Ground clearance of 300 mm allows smooth movement across rough agricultural land, uneven work zones, and challenging field conditions.
BEST SUITED FOR INDUSTRIES
Match Pole Stacker 100X with industry use cases where equipment reliability, field output, and site readiness matter most.
The Solar Pole Stacker 100X Equipment enhances solar farm installation by enabling safe lifting, transport, and precise positioning of torque tubes and poles, reducing manual effort and improving project efficiency.
PRODUCT FIT
Understand how Pole Stacker 100X fits project planning, field deployment, and daily operating priorities.
Designed for solar energy projects, the material handling system supports lifting, transporting, positioning, and installation of torque tubes, mounting structures, and related components across large-scale solar farms.
Compatible with tractors above 90 HP, the machine features high ground clearance, heavy-duty suspension, and remote-control operation, enabling efficient material handling across uneven terrain and extensive installation corridors.
Integrates seamlessly with existing tractor fleets, allowing EPC contractors to utilize a single tractor-mounted system for transportation, positioning, and installation support of solar structural components.
Remote-control operation improves handling precision and site safety while reducing manual effort, equipment dependency, and material movement time, helping accelerate project execution and lower overall operating costs.
Common questions about Pole Stacker 100X specifications, applications, and project fit.
Model details
Pole Stacker 100X is a equipment in the Pole Stacker range, designed to help project teams understand equipment fit, specifications, applications, and support options before work begins.
can be reviewed for working capability, media, brochure details, and project suitability.
Use the specifications and feature sections to compare Pole Stacker 100X with related models in the same product category.
The model page helps buyers discuss site conditions, output requirements, carrier compatibility, timeline, and quotation needs with Autocracy Machinery.
