Overview

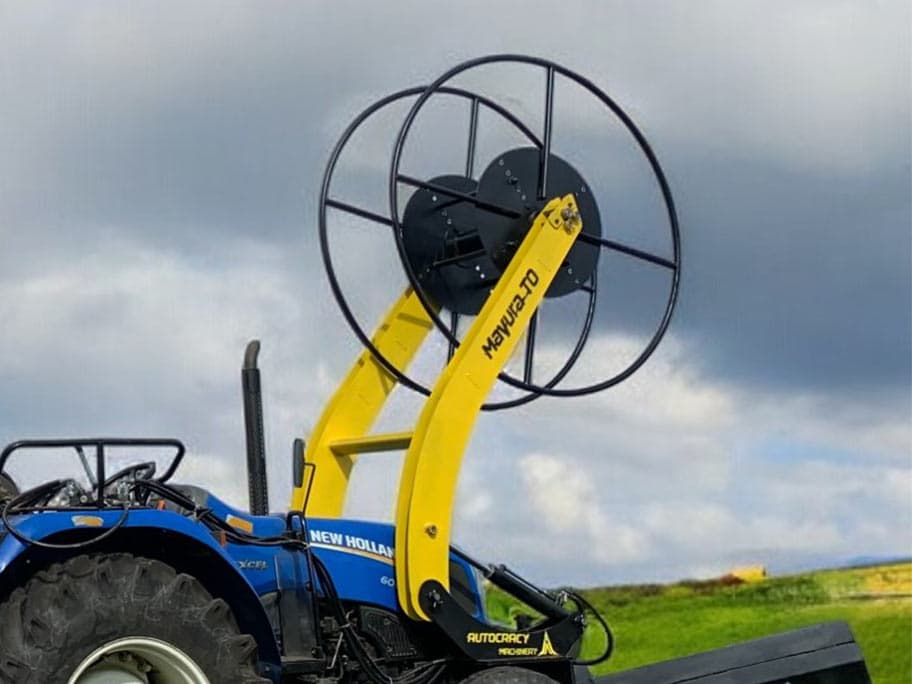

Hydraulic Decoiler Machine Attachment
Designed to enhance efficiency in cable and duct deployment, the decoiler provides a reliable and controlled approach for OFC duct laying and utility cable operations. It is purpose-built to enable continuous unwinding of HDPE ducts during trenching, allowing contractors to complete installations more quickly while significantly reducing manual handling.
The decoiler attachment features a front-mounted hydraulic system that offers improved operational control and better field visibility. Its robust framework ensures stable support for duct rolls throughout the process, while its compatibility with 60-120 HP tractors makes it a convenient solution for projects utilizing standard tractor fleets.
Functioning as a versatile cable reel decoiler machine, the unit includes an adjustable bobbin system designed to handle a wide range of roll sizes commonly used in fiber optic and underground cable installations. Its durable construction is well-suited for demanding site conditions, delivering consistent results across extended project routes.
As an efficient utility cable decoiler, it allows continuous duct deployment with minimal interruptions, reducing the need for repeated adjustments or repositioning. The integrated hydraulic lifting mechanism simplifies the handling of heavy rolls, while the removable bobbin configuration supports easy transport and quick setup between different work locations.
Precision Machines. Project-Ready.
Built for performance. Trusted by contractors, municipalities, and EPC teams across sectors.
Duct Diameter
60 mm
Horsepower
60-120 HP
Hydraulic Pressure
250 bar
Hydraulic Flow
150 L/min
ID of Duct Roll (adjustable)
850 mm
Fuel Consumption
2 – 8 L/hour
Total Weight
600 kg
Key Features
Discover what makes the Decoiler stand out from the competition
Adjustable Roll Configuration
The bobbin assembly is designed to support duct roll inner diameters from 650 mm to 850 mm along with roll widths up to 600 mm. This flexibility allows the decoiler attachment to handle a wide range of duct sizes commonly used in OFC and utility infrastructure deployment.
High Load Capacity
Equipped with a heavy-duty bobbin system, the unit can carry duct rolls weighing up to 400 kg with outer diameters reaching 2000 mm. This ensures longer continuous duct laying cycles, minimizing interruptions during large-scale and long-distance projects.
Efficient Transportation Support
The quick-removable bobbin setup simplifies loading and unloading processes while improving mobility between sites. This feature allows contractors to relocate the cable reel decoiler machine easily across multiple project locations.
Tractor Integration Compatibility
Designed to operate with 60-120 HP tractors, the system integrates seamlessly with existing fleets. This makes the tractor mounted decoiler in India a cost-effective solution for contractors without requiring additional self-powered equipment.
Hydraulic Lifting Mechanism
Integrated hydraulic lifting arms enable smooth and safe placement of duct rolls. This improves handling efficiency and reduces manual effort during cable, duct, and pipeline installation operations.
Adjustable Duct Roll ID Capability
With an adjustable duct roll ID capacity up to 850 mm, the cable handling decoiler equipment ensures controlled deployment, stable operation, and consistent output across OFC, irrigation, utility, agricultural, and construction environments.
PRODUCT FIT
Decoiler for practical tractor attachments work
Understand how Decoiler fits project planning, field deployment, and daily operating priorities.
Project Applications
The front mount decoiler is developed for OFC infrastructure projects, enabling continuous deployment of HDPE ducts during trenching operations. It supports efficient fibre optic cable installation across long-distance routes with improved consistency and reduced manual intervention.
Site Planning
Compatible with 60-120 HP tractors, the machine supports structured planning of duct deployment across diverse terrains, including rural roads, highways, urban corridors, and mixed ground conditions, ensuring smooth workflow execution.
Fleet Fit
The utility cable decoiler integrates easily with existing tractor fleets and trenching systems. This allows contractors to incorporate continuous duct laying capability without investing in separate standalone machinery.
Operational Value
The heavy duty decoiler attachment reduces manual duct handling, enhances trenching efficiency, and minimizes project delays. It enables faster and more economical fibre optic network installation, making it ideal for large-scale OFC and utility infrastructure projects.
More Models in Tractor Attachments
Frequently Asked Questions
Common questions about Decoiler specifications, applications, and project fit.
Need Assistance with Tractor Attachments?
Model details in India
Decoiler in India
Decoiler is listed for Indian buyers who need to compare machine capability, applications, specifications, and quote readiness for practical field deployment.
Decoiler
Use this page to review Decoiler for Indian soil conditions, access constraints, productivity targets, carrier fit, and industry requirements.
Autocracy Machinery can help project teams confirm model fit for telecom, irrigation, agriculture, construction, solar, water management, and utility applications in India.
